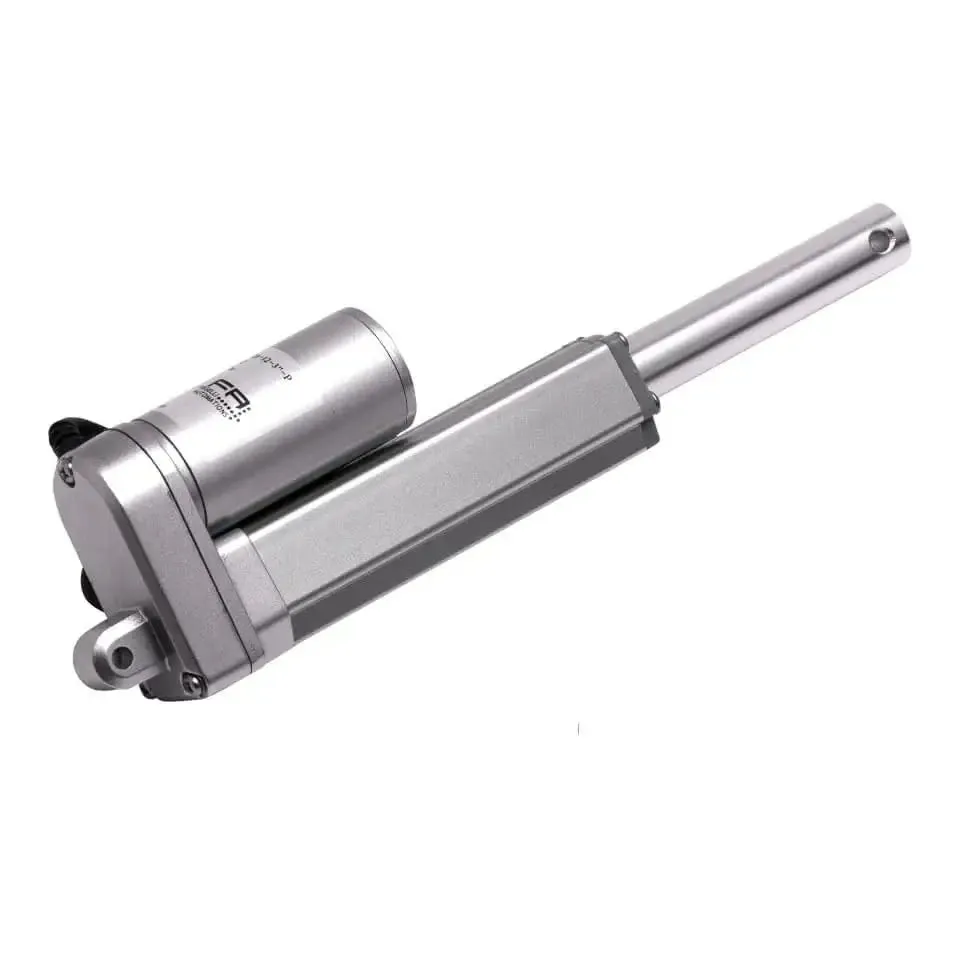

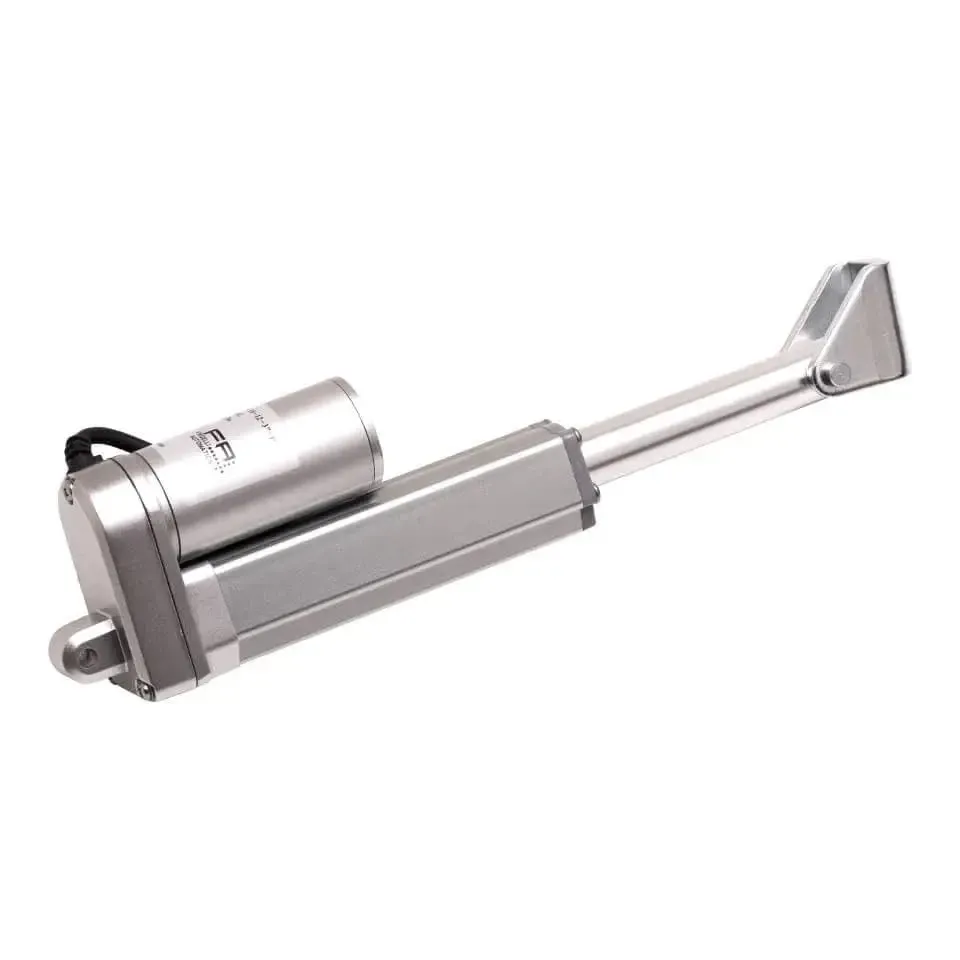

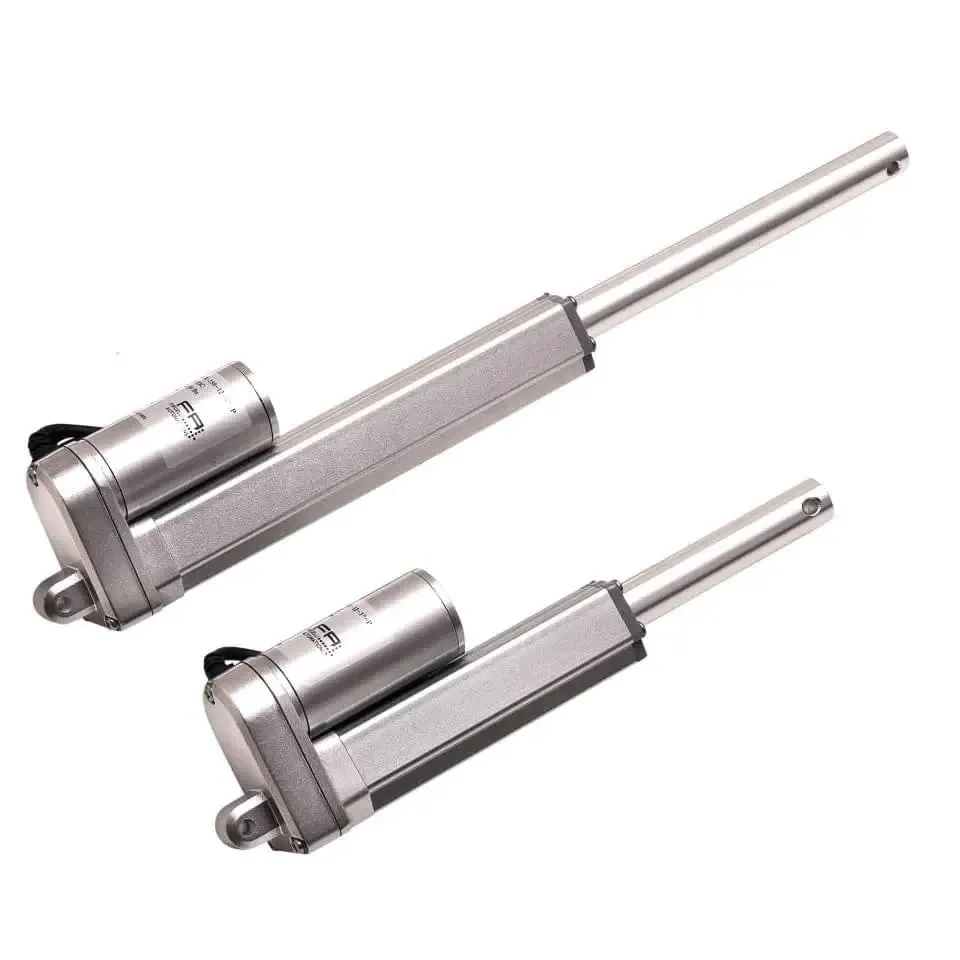

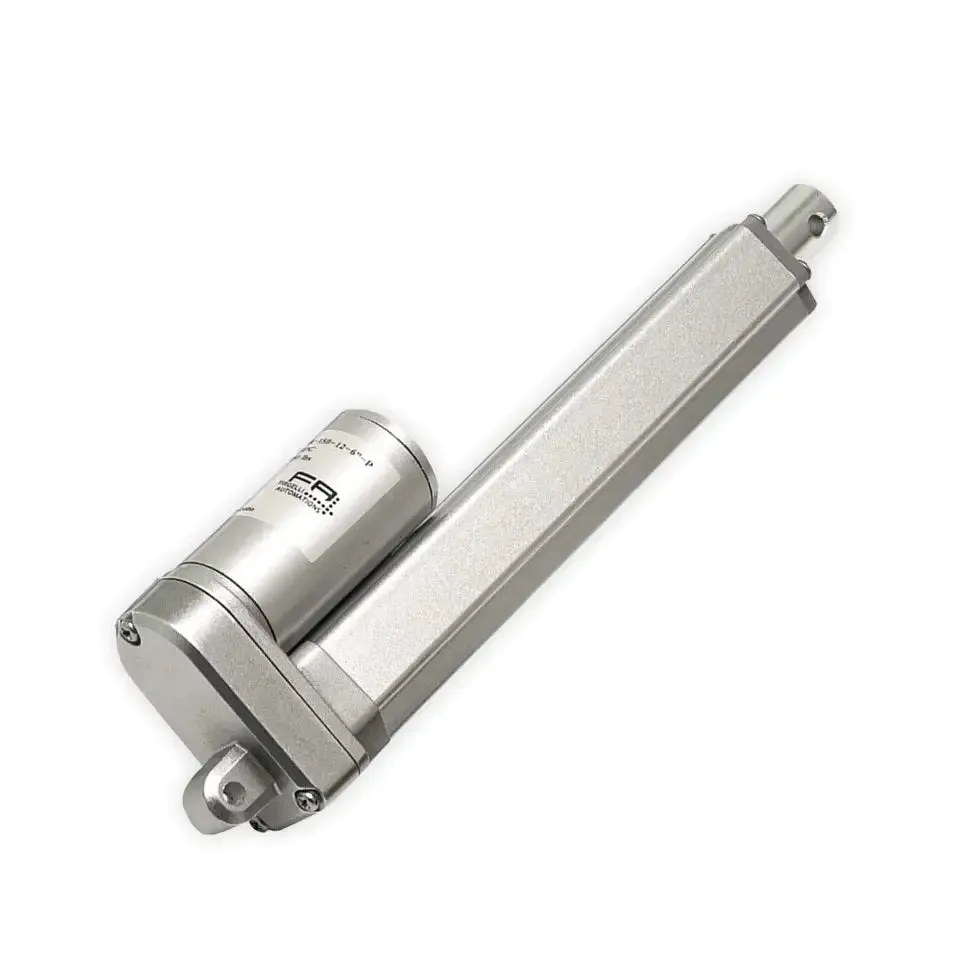

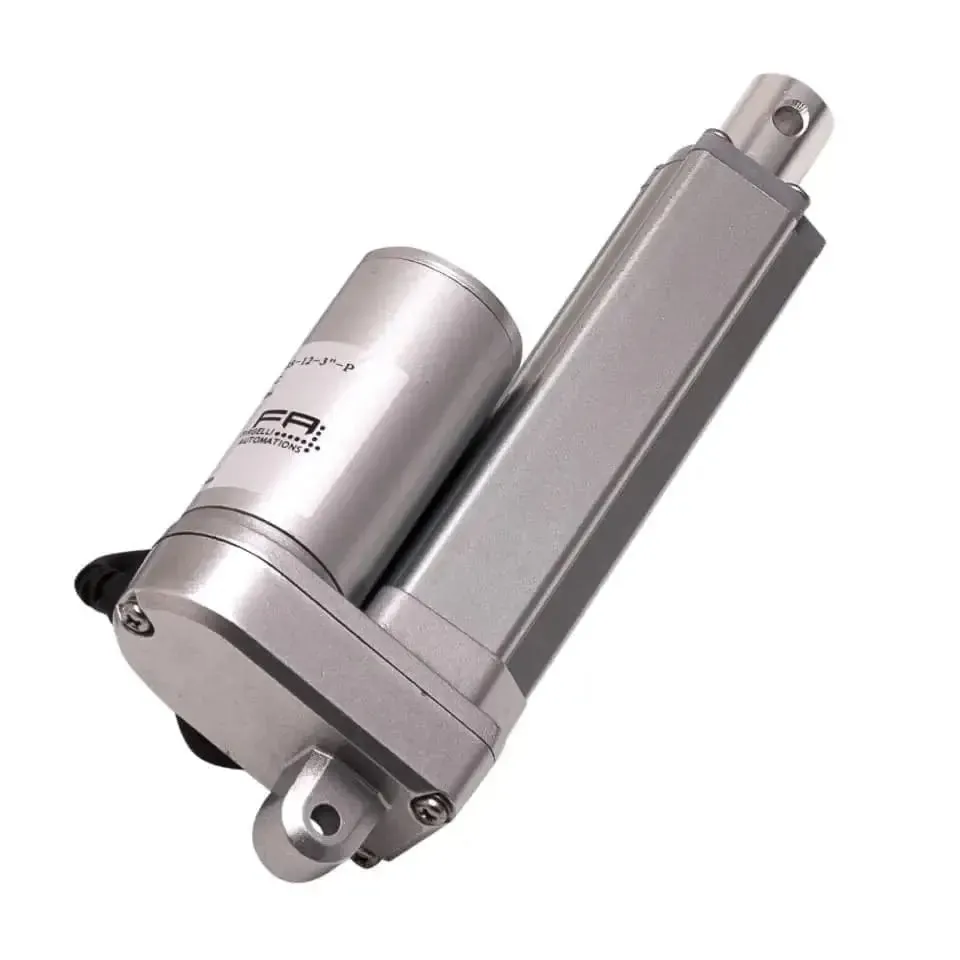

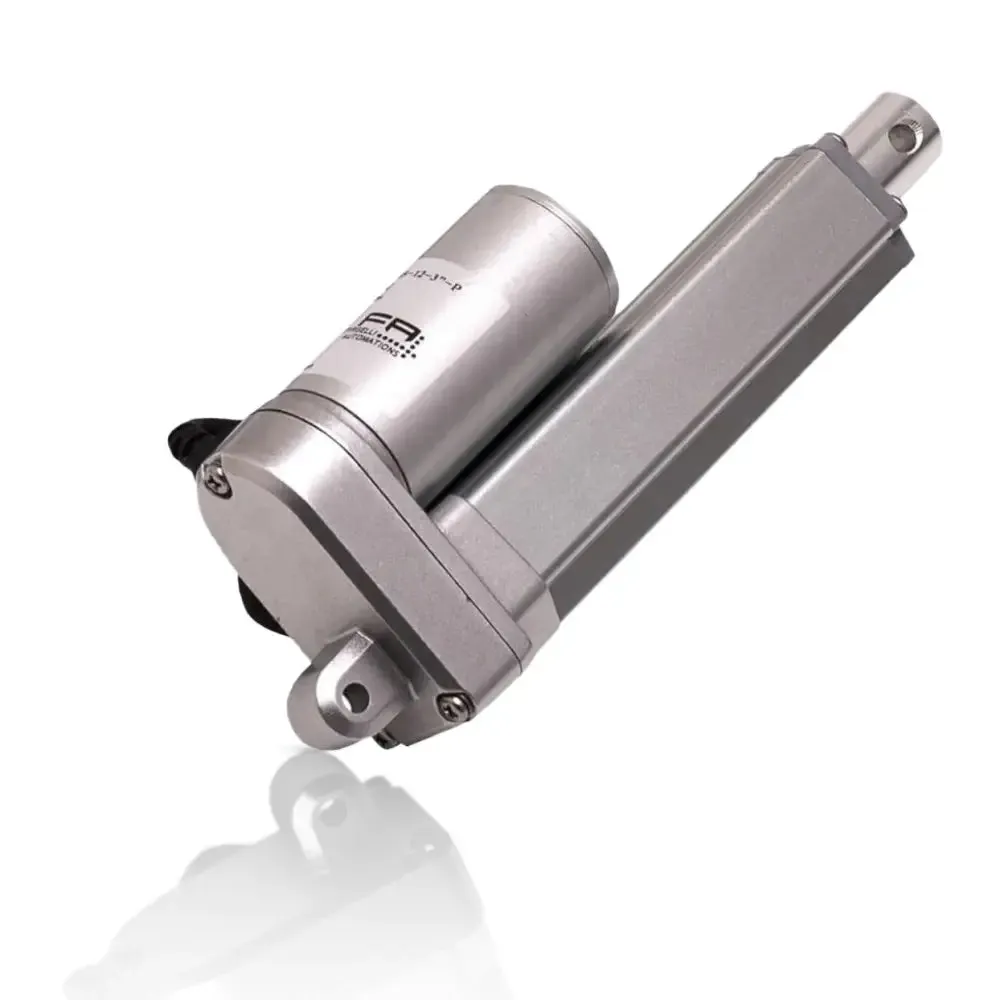

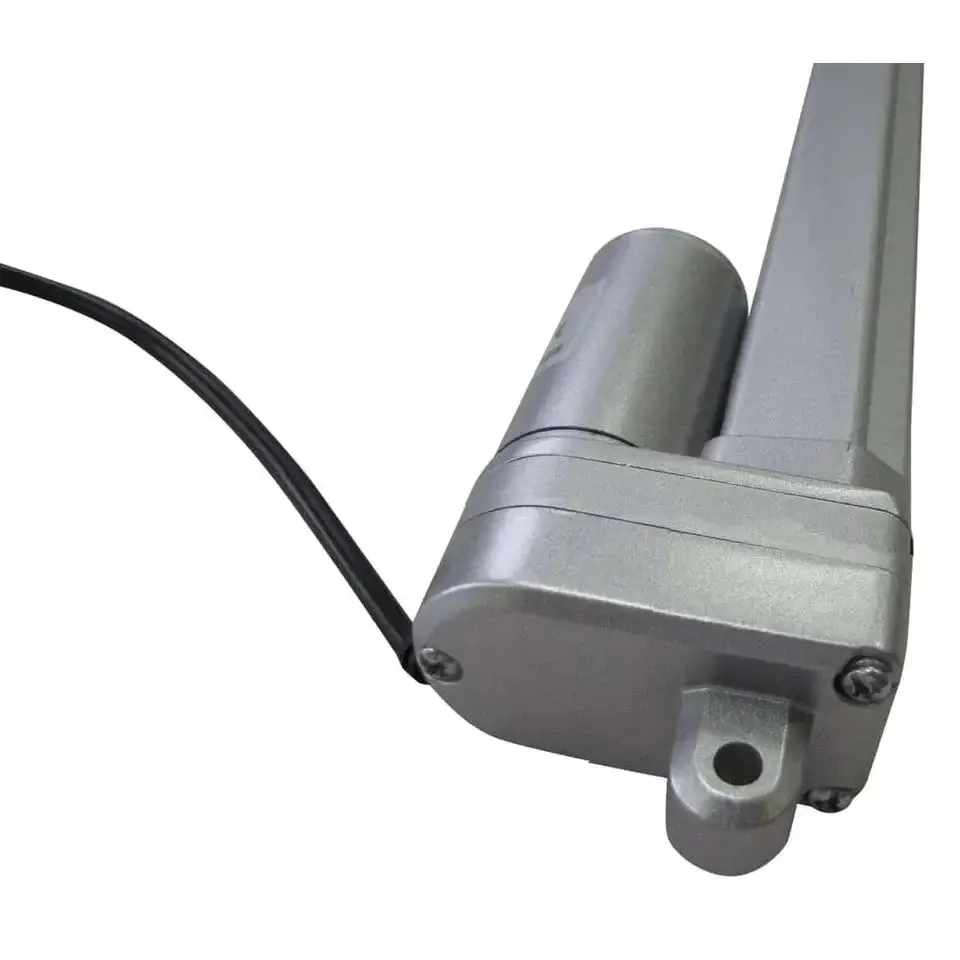

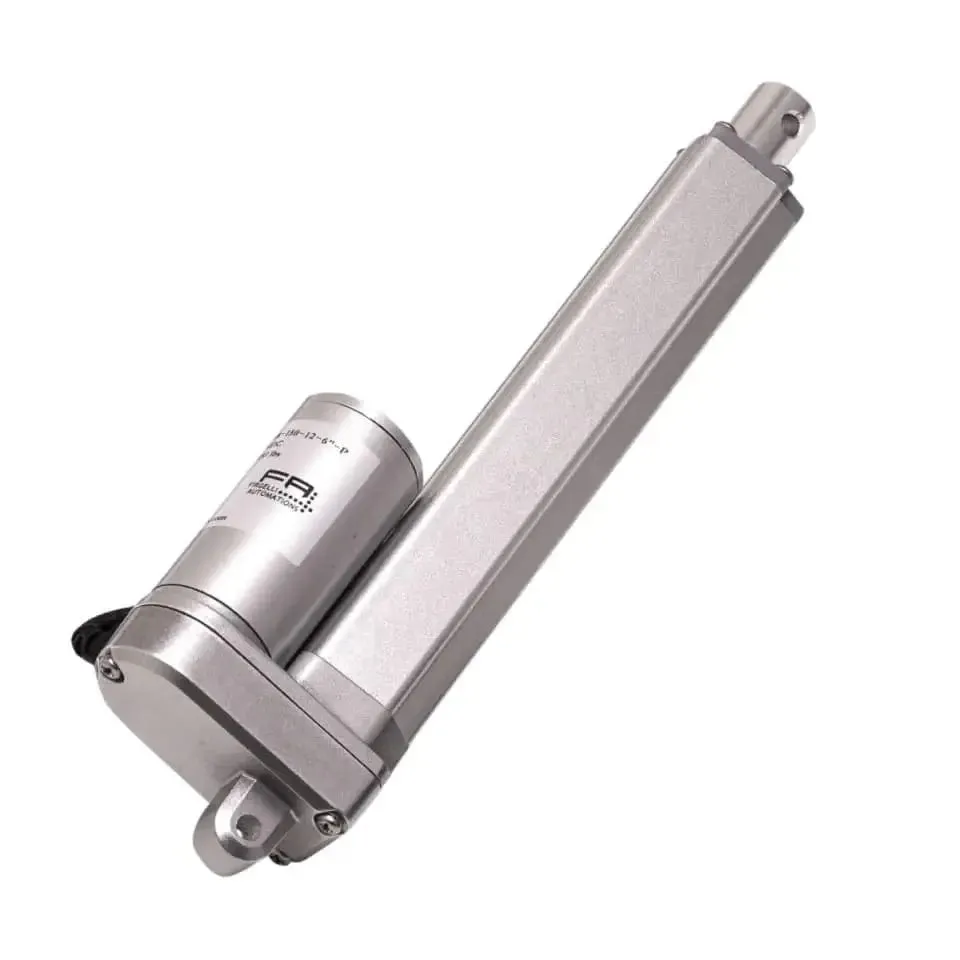

12VDC, 2-Inch Stroke 35lb Premium Force Linear Actuator

12VDC, 2-Inch Stroke 35lb Premium Force Linear Actuator

  • DefaultTitle

$ 60.68

$ 46.68

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

Description

  • 12VDC, 2-Inch Stroke 35lb Premium Force Linear Actuator
  • Offers an astounding 35 lbs of force
  • Provides high-grade aluminum housing

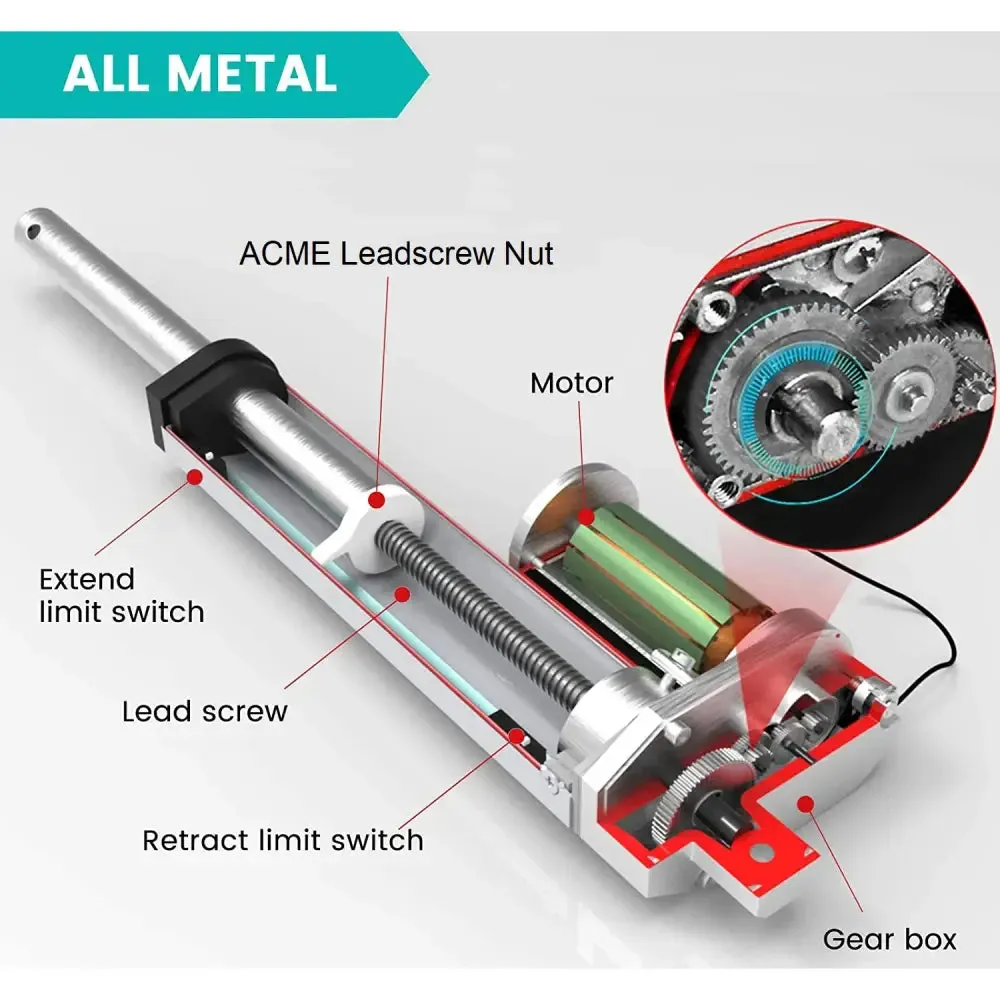

  • Built-in Limit Switch (factory preset)
  • Suit the needs of a variety of automation projects
  • IP Rating: 66

The 12VDC, 2-Inch Stroke 35lb Premium Force Linear Actuator is compact and versatile to suit the needs of a variety of automation projects. Comes with IP66 rated and manufactured with enhanced corrosion resistance to provide maximum life and value. The standard stroke is 2 inches and forces up to 35 lbs.

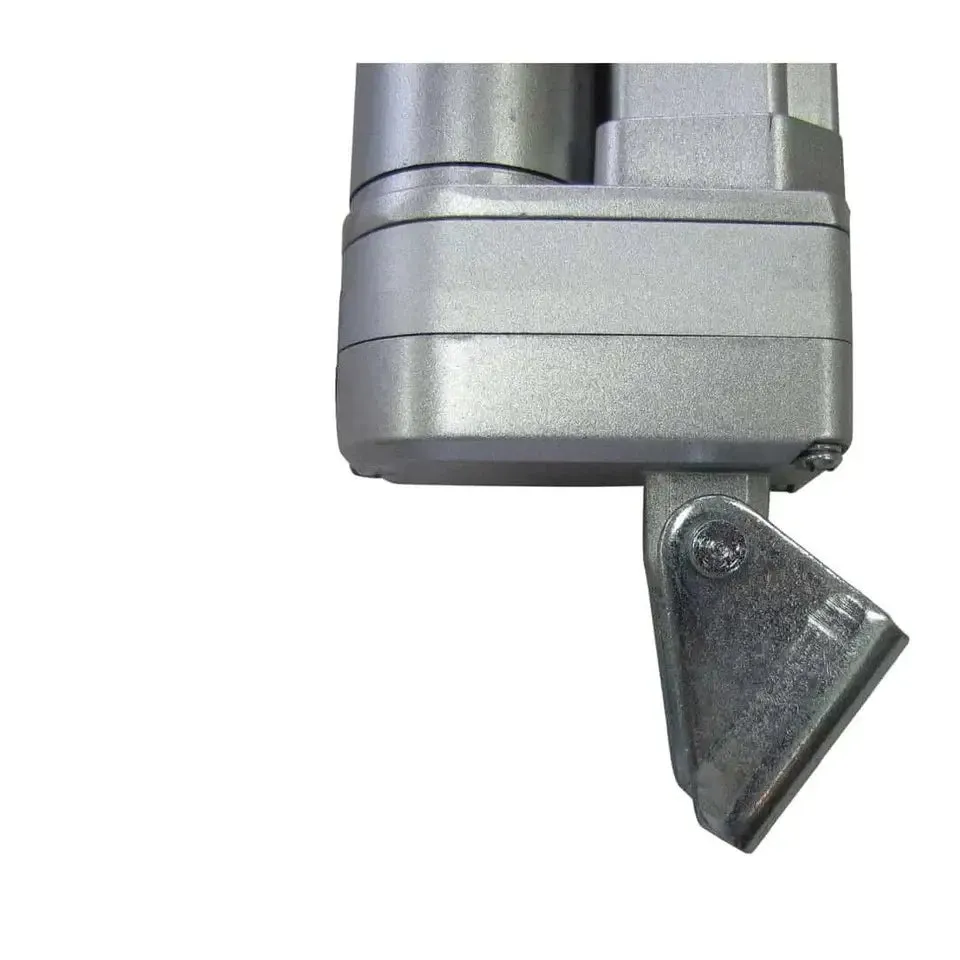

Note: The MB1-P Bracket is not included.

  • 1x 12VDC, 2-Inch Stroke 35lb Premium Force Linear Actuator

Size

  • Stroke Length: 2 inch
  • Clevis End Diameter: 1/4 inch
  • Retracted Length: 6.53 inch
  • Extended Length: 8.53 inch
  • Dynamic Force: 35 lb
  • Static Force: 200 lb
  • Speed (inches/second): 2 inch
  • Duty Cycle: 25 %
  • IP Rating: 66
  • Input Voltage: 12-volt DC
  • Max Draw: 5 A
  • Operational Temperature: -15 °F to 150 °F (-26 °C to 65 °C)
  • Limit Switch Built-in (factory preset)
  • Brackets: MB1-P
  • Weight: 762 g
